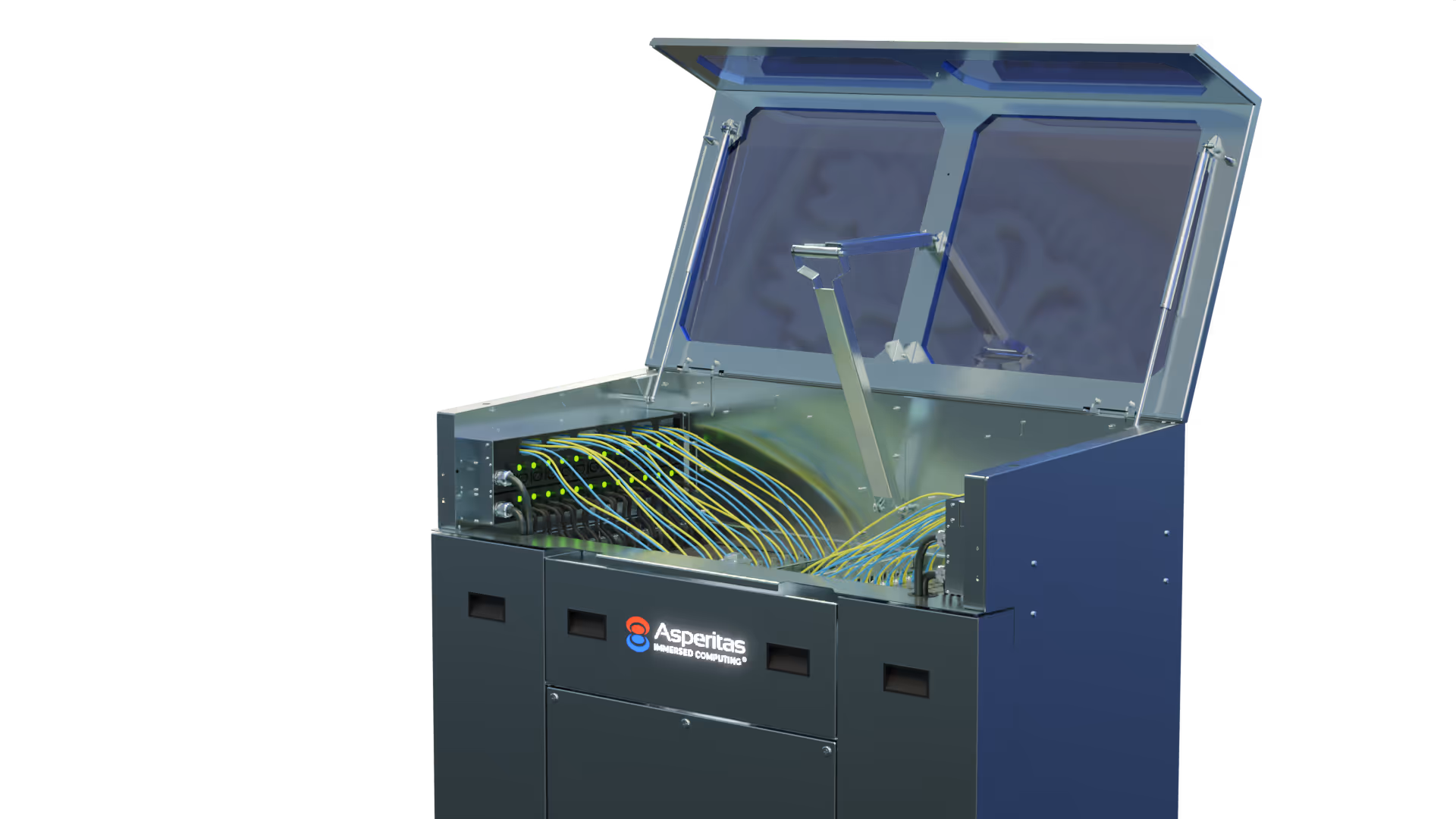

Asperitas AICN 1.2

Simplify your cooling infrastructure for scalable resilience

skip

Our latest product, based on the same natural convection concept as the original AICN, extends to a range of compatible servers, has a new management controller interface and allows for greater modularity and flexibility.

Business benefits

Unique benefits for your cooling needs

Highly scalable design

Monitors the optimal immersion cooling fluid level for natural convection circulation.

High energy efficiency and resiliency

Monitors the optimal immersion cooling fluid level for natural convection circulation.

Optimal IT compatibility

The increased height of the basin is designed to fit the increased length in immersion-ready servers available in the market.

Using natural convection

Monitors the optimal immersion cooling fluid level for natural convection circulation.

Technical Features

Increase your computing power with natural convection

Built-in Management interface

Single connection for facility, live dashboard & alerts

secure Liquid containment

Built with an insulated, dual hull

Highly serviceable

All parts are live serviceable

integrated Safety features

Autonomous, integrated safety system

easy to configure

Maximized configuration of
switch and PDU positions

Reliable

No moving parts, no pumps

Technical specifications

AICN1.2 Technical spcifications computing needs

SPECIFICATIONS AICN1.2
Dimensions
Dimensions (L x W x H): 1500x 715 x 1550mm
Height clearance requirement: 2300mm.
Weight
Transport weight: 550kg. Operational weight (without IT):Typical1120kg. Operational weight (with IT): Typical 1840kg
Capacity
24U, or 22OU
IT capacity (servers)
24x 1U, or 22 x 1OU,19”-21”, up to 900mm in height
IT capacity (switches)
External :Up to 4 switch mounted positions with max for 4U each.
Internal: 2U immersed
Solution Footprint
18kW/m², 32°C
Power capacity
Up to 44kW
Cooling capacity
Typical 32kW, up to 1.6kW/U
Non-IT power overhead
96W
Circulation method
Natural convection - Passive
Liquid amount
Minimum 708l, maximum 790l
Liquid compatibility
Hydrocarbondielectric fit for purpose
